How to Tell If a Car Fuse Is Blown + How to Fix It

Knowing how to tell if a car fuse is blown can save you from sudden electrical issues and unnecessary repair costs. Car fuses play a crucial role in protecting your vehicle’s electrical system.

These small components safeguard everything from your headlights and power windows to your stereo and dashboard electronics. When a fuse fails, even simple features can stop working without warning.

The good news is that diagnosing and replacing a blown fuse is often quick and easy. Many drivers can do it themselves with minimal tools or experience.

We’ll explain how to spot the signs of a blown fuse, locate your vehicle’s fuse box, and replace a faulty fuse safely, giving you the confidence to troubleshoot common electrical problems on your own.

What Are Car Fuses?

Fuses are essential components in your vehicle’s electrical system, acting as the first line of defense against electrical damage. Knowing how to tell if a fuse is blown begins with understanding what they are and how they function.

Think of a car fuse as a bodyguard for your expensive electronic components. Inside each fuse is a metal strip designed to melt when too much current flows through it. This breaks the circuit and stops electricity from flowing, preventing fires, meltdowns, and expensive damage to your car’s electronics.

Types of Car Fuses

Most modern vehicles use blade-type fuses, those plastic-housed components with two metal prongs that plug into the fuse box. They’re color-coded by amperage, making them easy to identify.

Here’s what you might find in your vehicle:

• Standard blade fuses (ATO/ATC): The most common type in modern vehicles, recognizable by their plastic body and two prongs.
• Mini blade fuses: Smaller versions of standard blade fuses, often used in newer vehicles to save space.
• Glass tube fuses: These are less common today but still found in older vehicles. They have glass exteriors, so you can see the filament inside.
• Cylindrical fuses (PAL Fuses): Larger fuses designed for high-current applications like power windows or seat heaters.

The color-coding system makes replacement straightforward; yellow typically indicates a 20-amp fuse, while green often represents a 30-amp fuse.

How to Tell If a Car Fuse Is Blown: Symptoms to Look For

When a fuse blows, it usually announces itself through a sudden electrical failure. Here’s how to tell if a blown fuse is behind your car’s electrical quirks.

Common Electrical Symptoms

The hallmark of a blown fuse is the complete failure of a specific system:

• Non-functioning power components: Power door locks freeze up, windows stop responding, the heater/AC fan goes silent, or the charger ports stop working.
• Entertainment system problems: The Radio or infotainment system goes dead, and the dashboard or dome lights stop working.
• External vehicle function issues: Windshield wipers become unresponsive, headlights, taillights, or turn signals fail.
• Sensory indicators: A burnt smell near the fuse box or warning messages on your dashboard.

A key clue is the complete (not partial) failure of a specific system. If something works sometimes but not always, you’re probably dealing with something other than a fuse problem.

Uncommon Symptoms

These less obvious signs might also point to a blown fuse:

• Multiple related systems failing simultaneously: Several connected electrical components might stop working if they share a single fuse.
• Intermittent operation: Occasionally, a damaged fuse might cause a system to work sporadically before failing completely.
• Electrical instability: You might notice flickering lights or erratic behavior in electrical components before complete failure.

What Causes Blown Car Fuses?

Blown fuses are common, and understanding why they happen can help you avoid repeat problems and protect your car’s electrical system. Here are some of the most likely culprits:

• Short circuits: This is one of the most common reasons a fuse blows. When a live wire touches something it shouldn’t, like the metal frame of your car, it creates a sudden surge of electricity. That surge overwhelms the fuse and causes it to blow instantly.
• Overloaded circuits: Plugging too many devices into one outlet or using power-hungry accessories can strain the circuit beyond what it’s designed to handle. The fuse cuts power to prevent further damage.
• Wrong or faulty fuses: Swapping in a fuse with higher amperage than recommended might seem harmless, but it can allow too much current through the system, putting your wiring at serious risk. Always check your owner’s manual and match the correct amp rating.
• Old or worn-out fuses: Like anything else in your vehicle, fuses wear down over time. Heat, age, and corrosion can weaken them, especially in older cars or in high-heat areas under the hood.
• Frayed or damaged wires: If wiring insulation starts to crack or wear away, the exposed wire can make contact with metal and create a short. This is especially common in areas that see a lot of vibration or movement.

Some less obvious causes include:

• Rusty connectors or brittle plastic: Corroded connections can increase resistance, generate heat, and blow a fuse over time.
• Incorrect bulbs or aftermarket parts: Using a bulb or accessory that draws more power than the system was designed for can easily overload a circuit.
• Loose battery cables: When your battery connection isn’t secure, the resulting power fluctuations can trigger electrical problems throughout the system, including blown fuses.
• Water intrusion: Moisture inside the fuse box or electrical components can cause shorts and unexpected fuse failure.

If you’re dealing with repeated fuse issues, it’s a sign that something deeper might be going on. Don’t just keep replacing the fuse; have a professional take a look to find and fix the root cause. It’ll save you time and potentially more expensive repairs down the line.

How to Identify a Blown Car Fuse

If one of your car’s electrical components suddenly stops working—like the radio, power windows, or headlights—it could be a blown fuse. Luckily, checking it is easier than it sounds once you know where to look and what to spot.

Locating the Fuse Box

First, you’ll need to find the fuse box. Most vehicles have more than one, so your owner’s manual is the best place to start—it’ll tell you exactly where they’re located.

Typically, you’ll find fuse boxes in one or more of the following places:

• Under the dashboard (usually on the driver’s side)
• In the engine compartment
• Occasionally in the trunk or beneath a seat

Once you’ve found the right box, gently remove the cover to reveal the fuse layout.

How to Spot a Blown Fuse

Start by locating the fuse related to the issue—whether it’s a dead headlight, a silent stereo, or a stuck window.

• Remove the fuse using a fuse puller or a pair of needle-nose pliers. Be careful not to damage it during removal.
• Hold it up to a light and take a close look at the metal strip inside.
• If the strip is broken, melted, or discoloured, you’ve likely found the problem.

Sometimes it’s hard to tell just by looking. In that case, you can use a multimeter or test light to check if electricity is flowing through the fuse. These tools check continuity and confirm whether the fuse is actually functional.

Steps for a More Accurate Diagnosis

If you want to be thorough or you’re unsure which fuse is responsible, here’s a smarter approach:

1. Figure out what isn’t working—is it your AC, wipers, or interior lights?
2. Check the fuse panel diagram to match the broken component to its corresponding fuse.
3. Test or inspect the fuse either visually or with a diagnostic tool.
4. Pay attention to patterns—if the same fuse keeps blowing, there may be a deeper issue, like a short circuit or an electrical overload.

Don’t just keep replacing a fuse that fails repeatedly—use that as a cue to dig deeper or call in a professional.

How to Replace a Blown Fuse

Replacing a fuse is one of those rare car fixes that’s quick, inexpensive, and totally DIY-friendly—if you take the right precautions.

Before you start:

• Make sure your car is parked on a flat surface
• Engage the parking brake
• Turn off the engine completely

Safety first. You don’t want to be working with live circuits.

Step-by-Step Replacement

1. Locate the correct fuse box using your owner’s manual.
2. Find the blown fuse by removing the cover and using the diagram to locate the correct one.

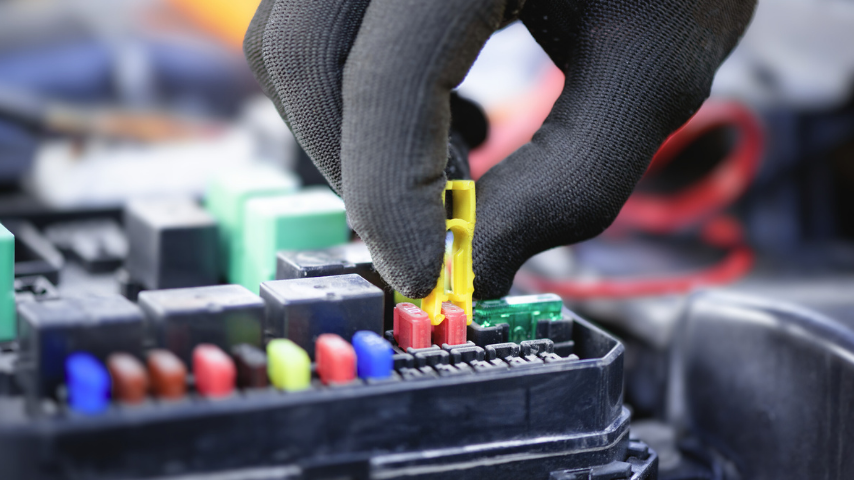

3. Pull it out with a fuse puller or needle-nose pliers.
4. Inspect it in the light—look for a broken filament or signs of melting.
5. Replace it with a fuse that has the exact same amperage rating. Never “upgrade” to a higher amp just because it’s what you have on hand.
6. Install the new fuse by pushing it firmly into place.
7. Test the fix by turning the ignition to the “on” position and trying the component again.

To stay safe, always use proper tools, don’t force anything, and be especially cautious if you’re working on hybrids or electric vehicles—those systems can carry high voltage.

Preventing Future Blown Fuses

Fuses blow for a reason, and while some causes are just normal wear and tear, others are avoidable. A few small habits can go a long way in preventing electrical issues down the line.

• Keep fuse boxes clean and dry: Moisture and grime can cause corrosion or shorts.
• Inspect high-use wiring areas: Check areas like doors and trunk lids for fraying or loose connections.
• Carry spare fuses: If one blows, you’ll be glad you don’t have to wait for a tow or hunt for a part store.
• Avoid overloading outlets: Your car’s power socket wasn’t designed to charge five devices simultaneously.
• Stick with manufacturer-approved accessories: This helps avoid overwhelming your electrical system with unexpected power draws.
• Fix underlying issues quickly: A blown fuse is a warning; it’s your car’s way of telling you something’s off.
• Get post-accident inspections: Even minor fender benders can hide electrical damage.
• Protect against rodents: Chewed wires can cause electrical chaos. If you park outside, consider rodent deterrents, especially in colder months.

A little prevention goes a long way when it comes to protecting your car’s electrical system and your peace of mind.

Car Fuse FAQ: Answers to Common Questions

Your vehicle’s electrical system depends on fuses to protect critical components from overloads and short circuits.

Still not sure how to tell if your fuse is blown and what to do about it? Below are answers to common questions about fuses, fuse boxes, and how to keep your car’s electrical function running smoothly.

How many fuse boxes does a typical vehicle have?

Most vehicles have two fuse boxes: one in the engine compartment (under the hood) and a second inside the cabin, usually beneath the dashboard or behind a panel. Each box protects various electrical components depending on its location and function.

How do I know which fuse controls what?

Check the fuse diagram, which is typically printed on the fuse box cover or found in your vehicle’s owner’s manual. The diagram maps out which fuse corresponds to each electrical circuit, such as headlights, power windows, or the radio.

What happens if I use the wrong fuse rating?

Using a fuse with a higher fuse rating than specified can be dangerous. It may not blow when it should, leaving sensitive components unprotected and risking damage to the electrical circuit. Always replace fuses with the exact amperage specified in the manual or diagram.

Why would a fuse blow even if it’s a good fuse and properly rated?

If a good fuse continues to blow, the issue is likely elsewhere, such as defective switches, worn wiring, or a short in the circuit. In these cases, replacing the fuse won’t fix the root problem, and professional inspection is recommended.

Can old fuses go bad over time?

Yes, an old fuse can deteriorate due to heat, vibration, or corrosion. Even if it hasn’t blown, it may not provide reliable protection. Periodic inspection of fuses, especially in older vehicles, is a smart way to maintain system integrity.

How do fuses affect overall vehicle safety?

Fuses are critical to vehicle safety because they prevent overheating, electrical fires, and damage to key systems. By shutting down power when something goes wrong, they protect both the car and its occupants.

Know When to Seek Help With a Blown Fuse

Fuses act as your car’s electrical first responders, sacrificing themselves to protect more expensive components. Learning how to identify and replace a blown fuse gives you a practical, time-saving skill that can help you avoid unnecessary repair bills.

Just remember, fuses blow for a reason. Always replace them with one that has the exact same amperage rating. If the same circuit keeps failing, it’s a sign of a deeper electrical issue that needs professional attention.
